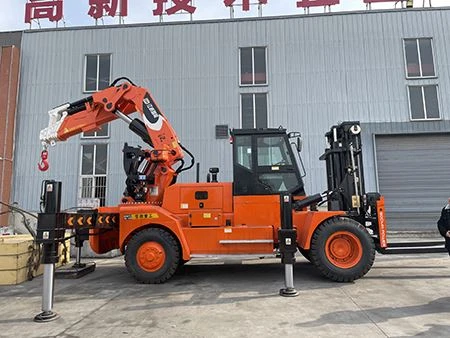

HNFC120-450 crane forklift is a kind of compound innovation products which is developed by SOCMA.

The rated load is 12 ton, Max. lifting Moment of folding crane is 45 ton.m, The folding crane can berotated at 360 degree.

1. Engine

(1)Adopt Cummins or Yuchai turbocharger diesel engine with strong power, energy-saving andenvironmental friendly, A can satisfy high efficiency operation requirements.

(2) The layout of cooling radiator system is at right side, hydraulic motor controlling with hydraulic fanand hydraulic oil fan. This can ensure the heat balance of whole machine.

2. Transmission

(1)Adopt Zhongnan transmission hydraulic gear box, CVT, big joint working condition traction, Reliabledouble variables system.

(2)Neutral start-up device is installed on transmission controlling valve, this makes start-up of wholemachine more safer.

3. Driving Axle

(1) Front axle adopts heavy duty forklift driving axle, spiral bevel gear and Wheel rim planetary geardeceleration and increasing torsion. It is big load capacity and long life span. Six heavy duty caliper discbrake, postpositional gas storage can,

(2) Rear axle adopt horizontal hydraulic cylinder type power steering structure, tight steering structure and this can reduce the steering resistance and damage of tyres, can improve the ride during the drive.

4. Hydraulic system

(1) Full Hydraulic load sensor steering system, small rear axle turning radius and more flexible steering.

(2) Adopt double pump interflow working hydraulic system and it can lower oil and energy consumption.

(3)Two sets of independent hydraulic system support two different working devices , shift valve controlcan separate the flow or combine the flow, trigger can stretch out and draw back for free and it can beadapted to different working conditions.

(4) One handle can realize three sets working movement of forklift due to the pilot control, it can reducehydraulic controlling pipe and can enlarge the space of cab.

(5) Rotating part of folding crane is controlled by double rotary motor, which makes the rotation moresmooth and improve the brake efficiency of motor.

(6) Hydraulic system install the oil-return radiator and back press protection device to ensure heat balanceof whole machine.

5. Мачта

(1)Forklift Attachments are installed at front mast, folding crane is installed at the back of vehicle, foldingcrane is used for hanging the cargos and it has folding and telescopic function, which is convenient fortravelling.

(2)Adopt Integrated frame ,five out-triggers are arranged at the front and rear of whole vehicle frame toensure balance of whole machine.

(3)Falling of mast adopt speed limit valve and press selection valve to reduce the compact of hydraulicsystem, it can decline the mast from top to the group when the engine flameout.

(4) Inner and outside mast adopt rolling wheel match, movement wheel force saving structure and themask has long life and high reliability.

(5) Cab is arranged at left side, the top height of crane after folding is not higher than mast forklift. It canlower the overall height of the vehicle, more stable and better traffic performance.

(6)High type, low type, standard mast, various attachments can be customized according to customer'srequirements.

6.Fork carrier

(1) Adopt quick-changing cargo loader, more shortcut.

(2)hydraulic distance-adjust cargo fork and it is convenient for adjustment.

(3)Cascade high strengthened fork, higher strength, more durable and higher life span.

7. TyresChoose the bulk type depth heavy duty forklift tyre, rear steering axle can swing around the centre andhas perfect traction and traffic performance.

8. Cab

(1) Adopt adjustable steering, aviation seat, more comfortable, automatic operation and flexible.

(2)Adopt domestic high quality electronic components, maintenance-free battery, the wire adoptsburning-resistance material, more durable. The optional parts include: fan, radio, cold and heat A/C, reversing displaying, Weighing machine.

(3) Be with folding crane remote controller and wireless reception module. Folding Crane "Rotation, Folding, lifting, Expansion and Contracting" are controlled by remote wireless technology. The Drivercan operate it at any position on the crane forklift. It is safe and reliable.

(4) Используя ограничитель крутящего момента, он будет автоматически предупреждать, когда работа рычага выходит за пределы рабочего диапазона, и автоматически ограничивать опасные действия, обеспечивая более безопасную работу.
